Kyocera 65Watt 12Volt Multicrystal Photovoltaic Module

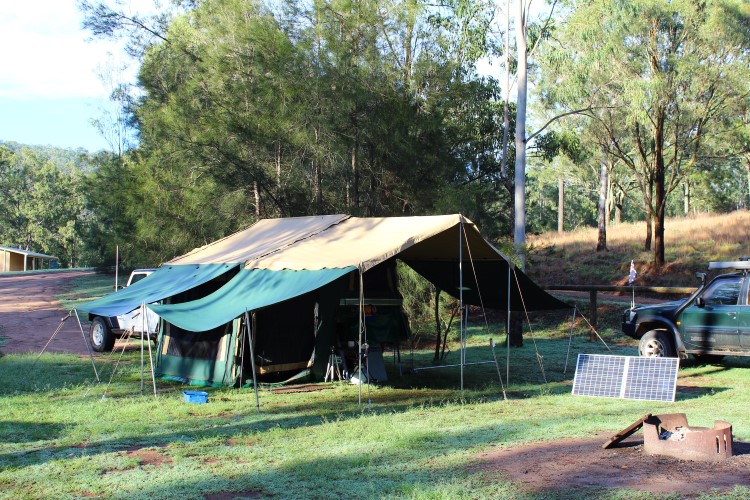

We have two hinged 65Watt Kyocera solar panels wired in parallel making a portable 130Watt solar kit. A Plasmatronics PL1210 solar regulator is installed in the box on the rear of a panel. I have also bypassed the solar regulator to allow unregulated output to the Redarc BCDC1225 MPPT solar regulator.

The conversion efficiency of the Kyocera solar cell is over 16%. These cells are encapsulated between a tempered glass cover and a pottant with back sheet to provide efficient protection from the severest environmental conditions. The entire laminate is installed in an anodized aluminum frame to provide structural strength and ease of installation.

The specs for one 65Watt Kyocera panel

1 year limited warranty on material and workmanship
20 years limited warranty on power output
Electrical Performance under Standard Test Conditions *STC
Maximum power - Pmax 65 W (+10% / -5%)
Maximum power voltage - Vmpp 17.4 V
Maximum power current - Impp 3.75 A
Open circuit voltage - Voc 21.7 V
Short circuit current - Isc 3.99 A
Max system voltage 600V
Electrical Performance at 800W/m², NOCT, AM 1.5
Maximum power - Pmax 46 W
Maximum power voltage - Vmpp 15.3 V
Maximum power current - Impp 3.01 A
Open circuit voltage - Voc 19.7 V
Short circuit current - Isc 3.22 A
Mechanical Characteristics vb
No of cells - 36 Cells
Dimensions - 751L x 652W x 54D mm
Weight - 6.0 kg
IP Code IP 65
Reduction of efficiency under Low Irrandiance
Reduction - 6.1 %
*STC: iradiance 1000W/m² AM1.5 spectrum, module temperature 25ºC
*NOCT: Nominal operating cell temperature 38ºC
*Reduction of efficiency from an irrandiance of 1000W/m² to 200W/m²(module temperature 25ºC)
Quality and Safety
UL 1703certified
ISO09001 and ISO 14001
Thermal cycling test, thermal shock test, thermal / freezing and high humidity cycling test, electrical isolation test, hail impact test, mechanical, wind and twist loading test, salt mist test, light and water exposure test, field exposure test
Details
Model: KC65T
Shipping Weight: 6kg
Manufacturer: Kyocera

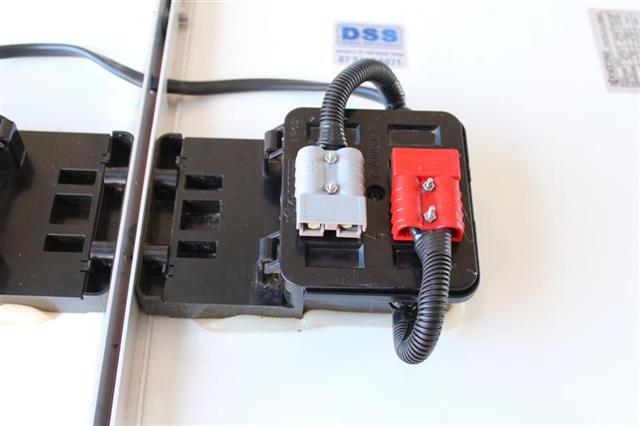

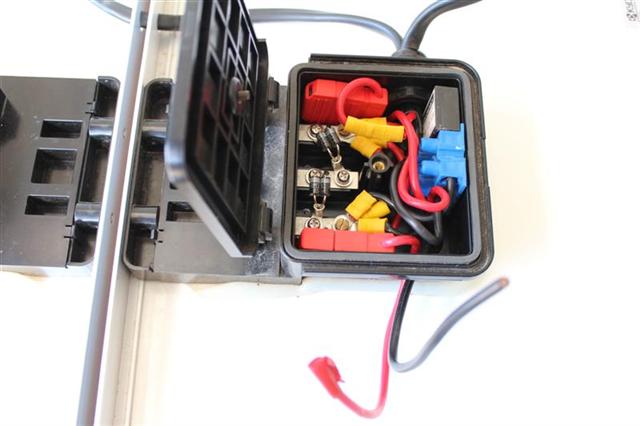

regulator & bypass wiring	regulated grey Anderson & unregulated red
